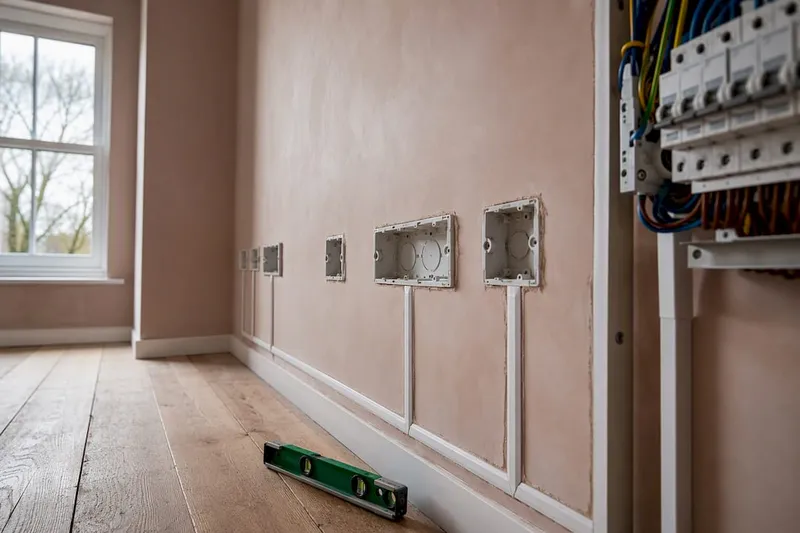

An electrical plan is a scaled floor drawing showing where every outlet, switch, light and the panel itself will sit, and it's the document both DIY renovators and licensed electricians use to keep a project on track. You need one before you drill a single hole, whether you're rewiring one bedroom or planning a full renovation. Complex work and anything touching the main panel still belongs with a qualified electrician, but understanding the basics puts you in control of the decisions that come before that call.
TL;DR:
- A clear electrical plan should prominently feature the panel location, circuit schedule, all outlets, lighting fixtures, switches, and protection notes for GFCI and AFCI systems.
- Symbols on the plan must be cross-checked with the legend, and connections like switch-to-light must be traced carefully, especially for multi-way switches.
- Drawing your own plan for small projects is feasible with graph paper or simple software, but large renovations benefit from digital tools that track revisions and safety checks automatically.
- Proper labeling of dedicated circuits and their exact appliances, along with accurate load calculations, is essential for safety and code compliance, avoiding common mistakes like overloading.
- Always verify plans against local permit requirements, clearly mark safety features, and treat the plan as a foundation for professional review rather than a final authority on live wiring.
Table of Contents
- Electrical plan basics: what your drawing must include
- What do the symbols on an electrical plan mean?
- How do you read an electrical plan step by step?
- How do you draw a simple residential electrical plan?
- Panel schedules, circuit labelling and load basics
- What safety checks and permits do beginners need?
- Using planning tools to avoid mistakes and work better with trades
- Why clear plans save time, money and reduce risk
- Turn your sketch into an inspection-ready plan
- Sources
- FAQ
Electrical plan basics: what your drawing must include
A usable plan is more than a scattering of dots on a floor sketch. It needs to communicate, at a glance, exactly what an electrician or inspector will find behind the walls.
Think of the plan as a location map rather than a technical wiring schematic, according to Cedreo's guide to creating an electrical plan. It shows where things sit, not how every wire is spliced inside the wall cavity. That distinction trips up a lot of first-timers who assume they need to diagram every connection.
A complete residential electrical plan typically shows:
- The panel location and its schedule (a directory listing every circuit and what it powers)
- Every outlet, including any dedicated outlets for major appliances like a cooker or dryer
- All lighting fixtures, ceiling fans and recessed lights
- Switch locations, with lines or arcs connecting each switch to the fixture it controls
- GFCI and AFCI protection notes on the circuits that require them
- Special-purpose runs for smoke detectors, data cabling or low-voltage systems
The panel schedule deserves particular attention because it's often the single most useful page in the whole set. It lists each breaker number, its amperage, and a plain description of what it feeds, alongside "homerun" notation, meaning the direct wiring path from a device group back to the panel. A teaching resource on electrical design notes that typical drawing sets pair floor plans with exactly this kind of schedule, plus a title block and legend, precisely so nobody has to guess.
Statistic Callout: Good documentation isn't just tidy paperwork. Clear drawings and schedules can double as evidence if installed work ever deviates from what was specified, which is why electrical design guidance treats unambiguous documentation as a design requirement, not an afterthought.

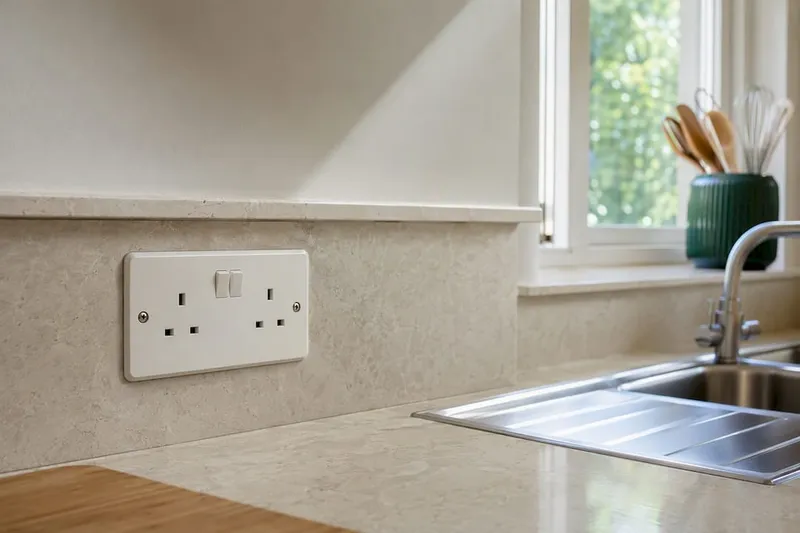

GFCI protection belongs on any circuit near water: kitchens, bathrooms, garages, outdoor outlets. AFCI protection typically covers bedroom and living space circuits, guarding against arc faults inside walls. Mark both clearly on the plan rather than assuming an electrician will infer them from room type alone.
What do the symbols on an electrical plan mean?
Every symbol on a residential electrical plan connects back to a legend, and that legend is the first thing worth finding on any drawing, before you try to interpret a single icon. Skip it and you're guessing. Standard practice is to place the legend in a corner of the sheet alongside the title block, scale and revision date, a convention RoomSketcher's guide to reading electrical floor plans confirms is near-universal across residential drawings.
Once you've found the legend, most home electrical plan symbols fall into a handful of recognisable shapes:
- A circle with two lines through it: standard duplex outlet
- A circle marked "GFCI" or with a small "G": ground-fault protected outlet
- A circle with radiating lines: ceiling-mounted light fixture
- A circle inside a square: recessed or "can" light
- An "S" inside a small circle or on a wall line: single-pole switch, sometimes labelled S3 or S4 for three-way and four-way switching
- A circle with diagonal hatching or a specific icon: dedicated outlet for a cooker, dryer or similar large appliance
Annotations matter as much as the shapes themselves. A switch symbol connected to a light fixture by a curved dashed line tells you which switch controls which light, something you'll want to trace carefully in multi-switch rooms. If you're new to reading floor drawings generally, House A-Z's guide on interpreting floor plan symbols covers the wider set of architectural marks you'll encounter alongside the electrical ones.
Pro Tip: Never assume a symbol means the same thing on every drawing. Local drafting habits and software defaults vary, so always check the sheet's own legend before you interpret anything, even if you've read dozens of plans before.
How do you read an electrical plan step by step?
Reading a plan in the right order stops you missing something important, and it takes a fixed few minutes once you've done it a couple of times.
- Start with the title block. Confirm the scale, the revision date and which floor or area the sheet covers before you look at anything else.
- Study the legend fully. Match every symbol on the page against the key rather than relying on memory from a previous project.
- Locate the panel and its schedule. This tells you how many circuits exist and roughly what each one is meant to carry.
- Trace each circuit from the panel outward. Follow the homerun notation to see which outlets, lights and switches share a circuit, and note where circuits split between rooms.
- Follow switch-to-light connections. Multi-way switching (controlling one light from two locations) uses specific arc or line conventions, so check the legend again if a connection looks ambiguous.
- Check protection notes. Confirm GFCI and AFCI markings sit where code expects them, and flag any dedicated circuits for large appliances.
- List anything unclear. Note ambiguous symbols, missing labels or unmarked circuits, and raise them with the designer or electrician before work starts.
This sequence works whether you're checking a contractor's proposed layout or reviewing your own draft before submitting it for a permit. Rushing straight to "does my bedroom have enough outlets" without first confirming the panel schedule is the single most common beginner mistake.
How do you draw a simple residential electrical plan?
Drawing your own plan is realistic for a single room or a modest renovation, and you don't need professional software to do it properly. Family Handyman's homeowner guide to electrical plan drawing points out that graph paper and a scale ruler still work perfectly well for small projects, though simple planning software speeds things up and reduces spacing errors.
- Draw your floor plan to scale. Measure each room and reproduce it on graph paper or in software at a consistent scale, such as a quarter inch to the foot.
- Place fixed elements first. Mark doors, windows, built-in cabinetry and anything that will limit where switches or outlets can physically go.
- Position lights and switches by room function. Kitchens need task lighting near counters; hallways need switches at both ends if they're long enough to warrant three-way wiring.
- Add outlets around the perimeter. Standard residential outlet placement follows a rule of thumb: no point along a wall should be more than six feet from an outlet, so gaps longer than twelve feet typically need one in between.
- Group devices into logical circuits. Keep high-draw items like a microwave or space heater on their own circuit where possible, rather than bundling them with lighting.
- Label every homerun back to the panel. Even a simple numbering system, like "Circuit 4, Kitchen Counter," saves enormous confusion later.
- Build a basic panel schedule. List each circuit number against its room and load, even in a simple table, before you finalise the drawing.
- Add your legend, scale note and any special call-outs. Flag protection requirements and large appliance circuits directly on the sheet.
Pro Tip: Sketch the room layout by hand first, then digitise it. You'll catch spacing problems, like a switch landing behind a door swing, far faster on paper than on a screen where everything looks tidy regardless of whether it's practical.
For rooms with heavier lighting needs, House A-Z's room-by-room lighting layout guide is worth a look before you finalise switch positions, particularly if you're planning multiple fixtures per room.
Panel schedules, circuit labelling and load basics
A panel schedule is essentially a directory for your breaker box, and a sloppy one causes more confusion during inspections than almost any other drawing mistake. Each row should list the breaker number, its amperage rating, and a specific description, "Kitchen Counter Outlets" rather than just "Kitchen".
Dedicated circuits deserve their own clear labels because they carry safety implications beyond convenience. A cooker, dryer, water heater or air conditioning unit typically needs its own circuit sized for that specific load, and mixing it with general lighting or outlets on the same breaker is a common and risky drafting error.
- Label every dedicated circuit by the exact appliance it serves, not a vague room description
- Keep the schedule legible enough that someone unfamiliar with the house can read it in seconds
- Note breaker amperage against each circuit rather than leaving it blank
Statistic Callout: Standard household branch circuits generally run 15 or 20 amps, while dedicated appliance circuits often need higher ratings, but exact sizing depends on the appliance's nameplate load and your local code. Circuit sizing calculations are not a guessing exercise. Always confirm actual breaker sizes with a licensed electrician rather than estimating from a plan alone.
What safety checks and permits do beginners need?
Most jurisdictions require a permit and inspection for anything beyond replacing a like-for-like fixture, and adding new circuits, moving the panel, or running new wiring almost always falls into permit territory. House A-Z's guide on when a building permit is required walks through the triggers in more detail if you're unsure whether your project qualifies.
Before anyone touches wiring, your plan should clearly display:
- GFCI protection on every kitchen, bathroom, garage and outdoor circuit
- AFCI protection on bedroom and living space circuits
- Smoke detector locations, ideally on their own interconnected circuit
- Dedicated circuits for major appliances, clearly marked and sized
On site, confirm the main breaker is off before any panel work, never assume a circuit is dead without testing it, and treat any work inside the panel itself as a job for a licensed electrician. Reading a plan safely is one skill; touching live mains wiring is an entirely different one, and conflating the two is where most DIY injuries happen.
Using planning tools to avoid mistakes and work better with trades
Digitising a plan speeds up the tedious parts, placing symbols consistently, keeping a panel schedule updated, and tracking revisions as your layout changes. A tool that checks your draft against common safety patterns can also catch a missing GFCI note or an appliance circuit that's been bundled incorrectly, before that mistake reaches a contractor's quote.
A practical workflow looks like this:
- Sketch your rooms and rough device placement on paper first
- Digitise the layout, adding symbols from a standard library rather than freehand icons
- Run an AI-assisted check to flag missing protection notes or ambiguous circuit groupings
- Export a clean panel schedule and floor plan to share directly with your electrician or inspector
Catching one mislabelled circuit before a quote goes out can save real money and a wasted site visit.
Why clear plans save time, money and reduce risk
Planning removes decisions from the moment you're standing in a half-finished room with a contractor waiting for an answer. A clear plan means every switch, outlet and circuit was decided on paper, calmly, weeks earlier, not improvised on site under time pressure.
That said, no drawing replaces professional judgement on live wiring or panel work. Treat your plan as the conversation starter with a licensed electrician, not the final word, and lean on resources like House A-Z's floor plan symbol guide when a detail feels unclear rather than guessing.
